Deploy the k8s

create VM the template

1
2
3
4
5
6
7


qm create 8001 --name "ubuntu-2404-cloudinit-template" --ostype l26 \
    --memory 2048 \
    --agent 1 \
    --bios ovmf --machine q35 --efidisk0 local-lvm:0,pre-enrolled-keys=0 \
    --cpu host --socket 1 --cores 2 \
    --vga serial0 --serial0 socket  \
    --net0 virtio,bridge=vmbr0

1
2
3
4


qm importdisk 8001 noble-server-cloudimg-amd64.img local-lvm
qm set 8001 --scsihw virtio-scsi-pci --virtio0 local-lvm:vm-8001-disk-1,discard=on
qm set 8001 --boot order=virtio0
qm set 8001 --scsi1 local-lvm:cloudinit

1
2
3
4
5
6
7
8
9


cat << EOF | sudo tee /var/lib/vz/snippets/vendor.yaml
#cloud-config
runcmd:
    - apt update
    - apt install -y qemu-guest-agent
    - systemctl start qemu-guest-agent
    - reboot
# Taken from https://forum.proxmox.com/threads/combining-custom-cloud-init-with-auto-generated.59008/page-3#post-428772
EOF

1
2
3
4
5
6


qm set 8001 --cicustom "vendor=local:snippets/vendor.yaml"
qm set 8001 --tags ubuntu-template,24.04,cloudinit
qm set 8001 --ciuser test
qm set 8001 --cipassword test
qm set 8001 --sshkeys ~/.ssh/id_ed25519.pub
qm set 8001 --ipconfig0 ip=dhcp

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13


source /etc/network/interfaces.d/*

# The loopback network interface
auto lo
iface lo inet loopback

# The primary network interface
allow-hotplug ens18
iface ens18 inet static
        address 192.168.1.15
        netmask 255.255.255.0
        gateway 192.168.1.1
        dns-nameservers 8.8.8.8 8.8.4.4

setup

1
2
3
4


$ export KUBECONFIG=/etc/rancher/k3s/k3s.yaml
$ mkdir -p ~/.kube
$ sudo k3s kubectl config view --raw | tee ~/.kube/config
$ chmod 600 ~/.kube/config

set up the agent

in the master:

1
2


cat /var/lib/rancher/k3s/server/node-token
K1039e227::server:123

1

curl -sfL https://get.k3s.io | K3S_URL=https://<master-ip>:6443 K3S_TOKEN=123 sh -

1
2


mkdir $HOME/.kube
sudo editor $HOME/.kube/config

set up Metallb

1

kubectl apply -f https://raw.githubusercontent.com/metallb/metallb/v0.13.12/config/manifests/metallb-native.yaml

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17


apiVersion: metallb.io/v1beta1
kind: IPAddressPool
metadata:
  name: default-pool
  namespace: metallb-system
spec:
  addresses:
    - 192.168.1.200-192.168.1.250  # Replace with your desired IP range
---
apiVersion: metallb.io/v1beta1
kind: L2Advertisement
metadata:
  name: l2-advert
  namespace: metallb-system
spec:
  ipAddressPools:
    - default-pool

Deploying services that use MetalLB LoadBalancer

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40


nano  web-app-demo.yaml
apiVersion: v1
kind: Namespace
metadata:
  name: web
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: web-server
  namespace: web
spec:
  selector:
    matchLabels:
      app: web
  template:
    metadata:
      labels:
        app: web
    spec:
      containers:
      - name: httpd
        image: httpd:alpine
        ports:
        - containerPort: 80
---
apiVersion: v1
kind: Service
metadata:
  name: web-server-service
  namespace: web
spec:
  selector:
    app: web
  ports:
    - protocol: TCP
      port: 80
      targetPort: 80
  type: LoadBalancer
kubectl apply -f web-app-demo.yaml

set static IP

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11


at /etc/systemd/network/05-eth0.network
[Match]
Name=eth0
[Network]
DHCP=no
DNS=8.8.8.8 8.8.4.4
Domains=k3s-admin
IPv6PrivacyExtensions=false

Gateway=192.168.1.1
Address=192.168.1.11/24

deploy an app with mongo

In the resources there are 2 types of app.

Mongo Python
Mysql Wordpress

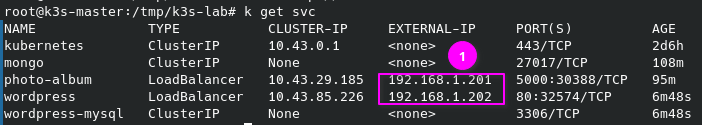

in the image the (1) is the lb review

review

DNS for Services and Pods - retrieve them by name rather than IP.

DNS queries may be expanded using the Pod’s /etc/resolv.conf. kubelet configures this file for each Pod.

pods records

For example, if a Pod in the default namespace has the IP address 172.17.0.3, and the domain name for your cluster is cluster.local, then the Pod has a DNS name:
